Business content
Manufacture of tools for molding composite materials
![](../img/en/en_business_img01.jpg)

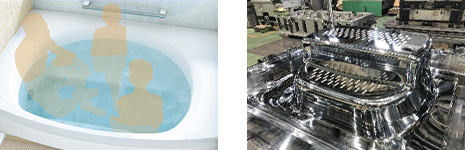

We design and manufacture tools for molding G-FRP and CF-FRP composite materials.
We also offer a wide range of services such as prototype and tool maintenance.
Cooperation in product development, various tests and prototypes
![](../img/en/en_business_img02.jpg)

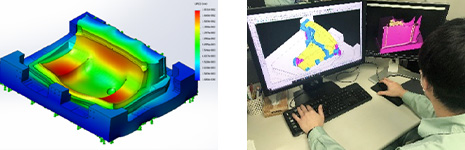

Customer product development We support development and research through CAE technology , material testing, molding experiments, and participation in various development projects.
Manufacture of tool accessory equipment and various jigs and tools
![](../img/en/en_business_img03.jpg)

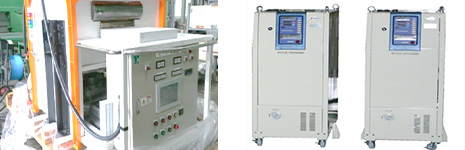

We also cooperate in production of various equipment such as temperature controller and prototype equipment.
We also design and manufacture jigs and tools that meet customer requirements.
Other services
![](../img/en/en_business_img04.jpg)

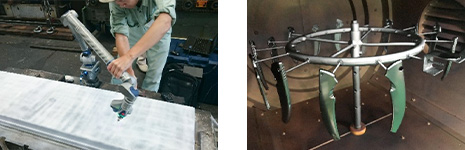

・ Prototype manufacturing service business using 3D printers
・ DLC (Diamond Like Carbon) coating business
・ 3D measurement service business
We are also going.
Adopted cases
-

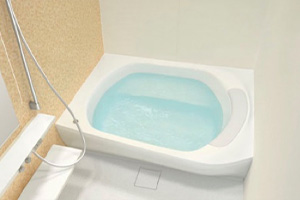

Bathroom
-

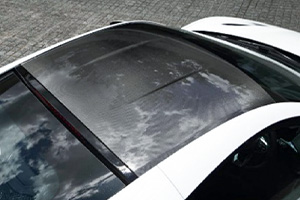

Car roof
-
Car engine hood
-
Construction machinery
-
Marine Sports
-

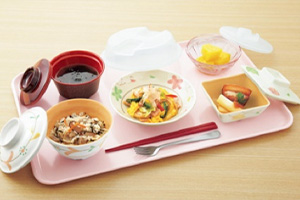

Tableware
Introduction of owned equipment
-

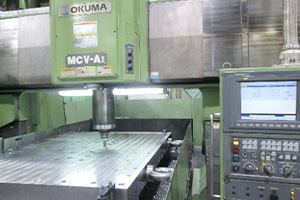

NC machining
-

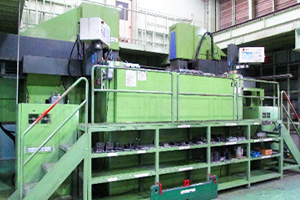

Electric discharge machine
-

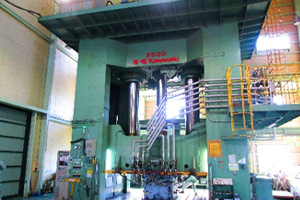

Hydraulic press machine
-

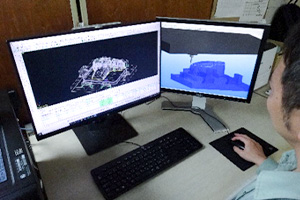

3D CAD / CAM
-

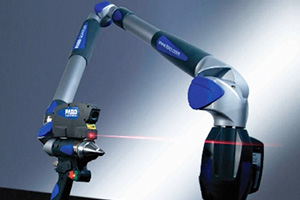

3D measuring machine
-

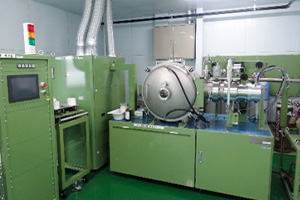

DLC device
Equipment list
CAD/CAM equipment
CAD / CAMth> | |
---|---|
Solidworks 3D CAD | 5 |
Cadceus 3D CAD | 3 |
Cadsuper FXⅡ 2D CAD | 6 |
C&G Tools 3D CAM | 5 |
PolyWorks Inspector | 1 |
Machining equipment
Machining Name | Stroke | ||
---|---|---|---|
X | Y | Z | |
(mm) | (mm) | (mm) | |
OKUMA MCV-A4000 | 4000 | 2000 | 420 |
OKUMA MCR-B4000 | 4000 | 2500 | 700 |
OKUMA MCV-A4000Ⅱ | 4000 | 2056 | 450 |
OKUMA MCV-A3000Ⅱ | 3000 | 2000 | 450 |
OKUMA MCR-AF | 2600 | 1500 | 850 |
OKUMA MB66VB | 1500 | 660 | 650 |
OKUMA VH-40 | 560 | 450 | 450 |
MAKINO MCC3018 | 3000 | 1800 | 1500 |
MAKINO H2210 | 2200 | 1000 | 800 |
MAKINO SNC86(Vertical/Graphite) | 800 | 600 | 400 |
HITACHI HB3150 | 3150 | 1250 | 710 |
HITACHI HB2500 | 2500 | 1250 | 710 |
OKK VM900 | 2060 | 940 | 820 |
OKK TRC-1250 | 2200 | 1250 | 800 |
OKK VM940R | 2060 | 940 | 820 |
OKK PCV-40 | 560 | 410 | 410 |
ENSHU 650V | 1300 | 650 | 660 |
SAKAZAKI VNC-90 | 700 | 450 | 400 |
MIROKU MHG-1500NC(Gun Drill) | 2000 | 950 | 1880 |
MIROKU MHG-1200NC(Gun Drill) | 1200 | 950 | 1880 |
EDM Name | Stroke | ||
---|---|---|---|
X | Y | Z | |
(mm) | (mm) | (mm) | |
Sodick A10C | 1000 | 600 | 500 |
Sodick A85-LST | 850 | 500 | 450 |
Sodick AQ35L | 350 | 250 | 250 |
MAKINO EDNC-85W | 800 | 500 | 350 |
MITSUBISHI ES027 | 1000 | 600 | 450 |
SEIBU EW-450K3(Wire-cut EDM) | 310 | 450 | 206 |
Press Machine
Press Machine | Plate Size/Stroke | ||
---|---|---|---|
Kawasaki 2500T | 4000 | 3000 | 2500 |
Kawasaki 1500T | 3000 | 2500 | 2200 |
Kasasaki 1000T | 2500 | 2200 | 2300 |
Yamamoto 1500T | 4000 | 2500 | 2000 |
Yamamoto 300T | 2500 | 1500 | 1500 |
Kojima 500T | 2000 | 1500 | 2000 |
Mitsubishi 3500T (Injection molding) | 2550 | 2500 | 3200 |
OTHERS
OTHERS | SIZE | ||
---|---|---|---|
PBII-C600 DLC film deposition equipment | φ650 | 450 | 450 |
SGK-3DT Blast Cabinet | φ600 | 450 | 450 |
FARO Edge ScanArm HD | 7 axesx2.7m |
Corporate Summary
Name of the company | YASUDA Moldtec, Inc. |
---|---|
Address | 5-2 Mogami, Momoyama-cho, Kinokawa, Wakayama,JAPAN Tel: +81-(0)736-66-2224 Fax : +81-(0)736-66-2272 |
Founded | March 1934 |
Capital | JPY20,000,000 |
President | Kimio Yasuda |
Access
40 minutes by car, 60 minutes by train from Kansai International Airport
